Xiaomi Mi TV 3S with a curved screen

New TV attracts the attention of an impressive set of features and an equally impressive price tag. TV Xiaomi Mi TV 3S expanding its range of new TVs 63-inch 4K TV with a curved screen, the display is performed on the matrix from Samsung, as it is strange. Mi TV TV has a smooth surface and the screen body, its thickness is only 5.9 mm, located separately from the loudspeaker unit.

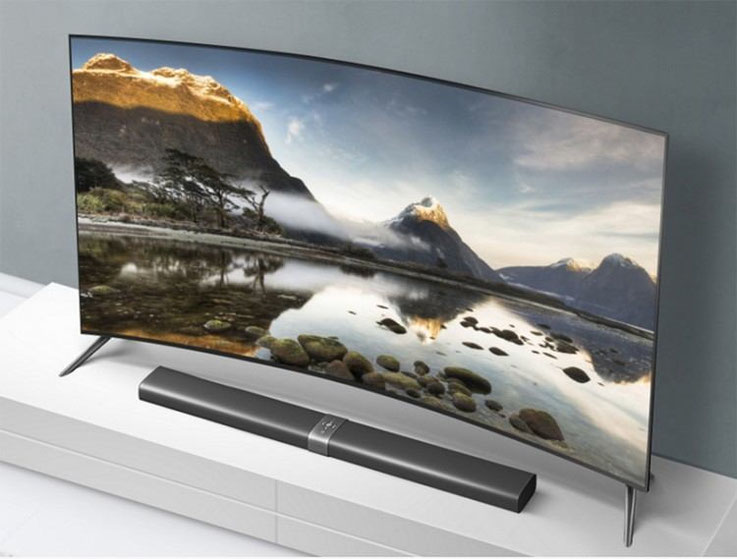

Xiaomi Mi TV 3S
Xiaomi Mi TV 3S

Xiaomi Mi TV 3S 63″ Curved 4K TV

Since last year, was launched commercially TV Xiaomi Mi TV 3 review which we have given, it did not take much time. Everyone expected that the model will come with a curved screen ... And it happened!

In addition, the manufacturer Xiaomi introduced in the line 3S TV except the TV with a diagonal of 63, a small TV with a screen size of 43 inch flat screen TV, but unfortunately, he only permit FullHD. TV Xiaomi Mi TV 3S with 63 inch curved screen is built on a 4-core processor with a frequency of 1.4GHz Mstar 6A928 SoC, 2GB of RAM and 8GB of memory for applications.



This model with a 63 inch screen does not differ a great angle and viewing the screen of the standard 176 degrees, the dynamic response pixel screen 8 ms (which is probably a bit too much). The contrast of 4000: 1, color gamut 78% NTSC Colour Gamut.

Interfaces of Xiaomi Mi TV 3S 63 "

Available interfaces on TV Xiaomi Mi TV 3S: a built-in wireless Wi-Fi 802.11 adapter, the new version of Bluetooth 4.1 LE, three ports HDMI 2.0, AV input, analog tuner, Ethernet port, one USB 2.0 port and one port USB 3.0. The main sound is transmitted dome tweeters and four 2.5 inch subwoofer system with Dolby Audio, Virtual Surround Sound b Bass Boost.

Xiaomi Mi TV 3S 43″

Simultaneous release 43 inch TV models Mi TV 3S may seem fun producer, but it is not so. As an older brother, a TV with a diagonal of 43 received a "foreign" display from LG with a viewing angle of all the same 176 degrees and 8 ms response time.



TV is equipped with a 4-core processor with a frequency of 1,4GGts made on SoC technology (as in the model with a diagonal of 63), but memory on board two times less - only 1GB of RAM. Memory available to the user remains the same - 8GB. The speaker system consists of two broadband loudspeakers (30 x 90 mm). The thickness of the TV with a diagonal 43-inch Mi TV is 10.9 mm, it is controlled by the TV as the older model, through the Android MIUI.

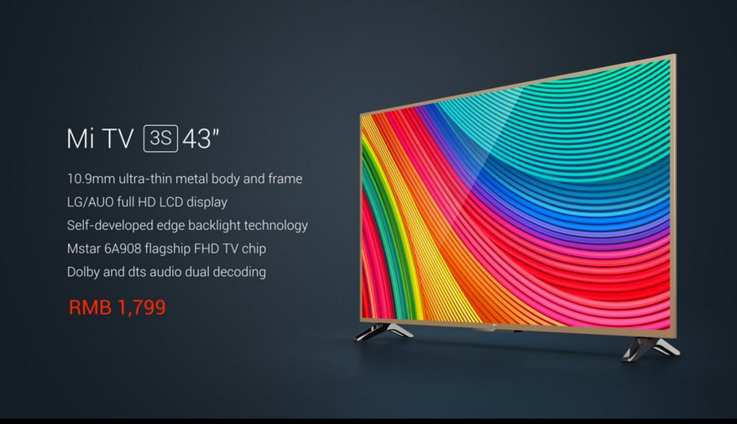

Xiaomi Mi TV 3S 43″
Xiaomi Mi TV 3S 43″

Interfaces of Xiaomi Mi TV 3S 43 "

User interface of the available 43 "TV: built-in wireless communication standard Wi-Fi 802.11 a / b / g / n, Blue tooth Bluetooth 4.0LE, three ports HDMI 1.4, VGA port, analog tuner, one USB 2.0, one USB 3.0 port and Ethernet.



TV Price Xiaomi Mi TV with 63 inch curved screen 4K about $ 1380, and his younger brother with 43 inch FullHD resolution of approximately $ 276. As you can imagine, these models will be available in the market in the first place in China, then they will be in the Indian market. In Russia, until the TV can only be through the gray suppliers.
