TVs Panasonic in 2016

This year, Panasonic is expanding its line of 4K TVs that can handle HDR format. The flagship of the lineup is DX900 with the certificate "UHD Premium", and the entry-DX800 has a unique design. The company will continue to use Firefox OS system for Smart TV.

Technical parameters lineup

Panasonic has released its first OLED TV at the end of last year, but in spite of it is still too early to expect an extension lineup OLED models. Model of the last year will be carried over to the lineup in 2016.

In their LED models of Panasonic company will focus on improving image quality through 4K and HDR. To this end, the company will be released even your UHD Blu-Ray player to complement the new TVs. UHD Blu-Ray player will be able to apply to the TV input signal to 4K, HDR, an expanded color gamut, and better sound.

Panasonic will mainly deliver UHD TVs, and some of them will be capable of processing HDR. But, as in the case of other manufacturers, we can not model all equally well in HDR video display format. Only DX900 will be the flagship hardware (LED backlight with local dimming) to fully implement the HDR. HDR widens dynamic range, allowing you to see the details, not only in the brightest scenes, but also the darkest. This allows for more detail see the plot.

Panasonic claims that it will be able to display HDR DX900 through 512 local dimming zones. This model has more certified "UHD Premium". There will also be support for HDR video streaming from Netflix and Amazon Video services. To support these services should be HEVC decoder. Support VP9 decoder as will, which is necessary for receiving streaming video from YouTube as 4K.



Panasonic has developed a new processor HCX + (Hollywood Cinema eXperience plus), which ensures accurate color reproduction. The new processor is the flagship in the DX900. Models DX800, DX780, DX750 have a smaller version of the HCX processor.

Several new Panasonic 2016 TV models are able to reproduce, the more colors than conventional TVs due to the extended color gamut beyond Rec.709. Panasonic did not specify how many of the DCI-P3 (used in digital cinema) color gamut will, as stated by other manufacturers. But if the model is the DX900 "UHD Premium", it should be minimally 90% of the DCI-P3.

Another area of development this year is the system Firefox OS. Panasonic is still the only manufacturer that supports the Mozilla effort to build an operating system for TVs. Panasonic believes that the new simple interface to please users. It is the operating system Smart TV functionality is implemented.

Panasonic 2016 TVs Year later this year will be updated Firefox 2.0.



No LCD TV with a curved screen in 2016. As the number of models with 3D support has been reduced. Only the representatives of one series can work with 3D content.

Some of 4K models will have dual tuner. This allows transmission when viewing recorded video from another channel on the hard drive connected to the USB port. In addition, Panasonic company provides integrated functions, such as "TV Anywhere" and "In-house TV Streaming". As the name implies, these functions allow you to watch live TV channels from the TV or recording on mobile devices outside the home, or on other TVs (with support for streaming) in the house (connected to the same Wi-Fi).

Lineup Panasonic

Panasonic DX900

DX900 is the leader in 2016 among the LCD models. This TV has a LED backlit full array local dimming. This makes it possible to implement a fully HDR format. There is also a system Firefox OS 2.0 and other advanced technologies.

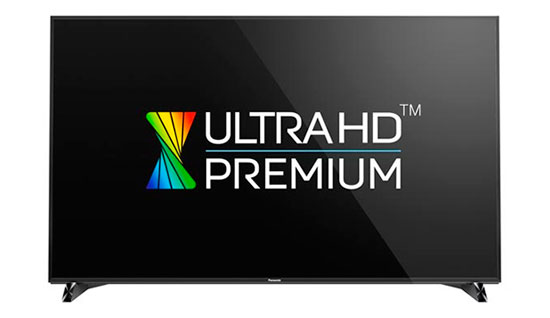

Panasonic DX900
Panasonic DX900

"Art of Light" design;

4K resolution;

HDR Premium;

FALD (512 zones) - "Local dimming Ultra";

"UHD Premium" certification;

"THX 4K" certificate;

Ultra Bright Panel;

3000 BMR (Hz +);

Studio Master HCX + processor;

Extended color gamut;

3D (active);

Firefox OS 2.0;

Quad core PRO;

Dual tuner;

TV Anywhere;

In-house TV streaming;

"Quad Passive Radiator" speakers.



58" Panasonic TX-58DX900 – 4000 $

65" Panasonic TX-65DX900 – 4700 $

Panasonic DX800

DX800 has a unique design combined with a good picture quality. It has all the modern technologies to improve the image, but there is no illumination of the full array of LEDs, like DX900.

"Freestyle Design";

4K resolution;

HDR processing;

Super Bright Panel;

2000 BMR (Hz +);

Studio Master HCX processor;

Wide range of colors;

Limited local dimming;

THX 4K certification;

3D active;

Firefox OS 2.0;

Quad core PRO;

Dual tuner;

TV Anywhere;

In-house TV streaming;

"12 Train Prismatic" speakers.

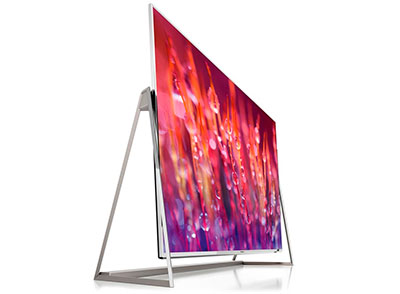

DX800
DX800

50" Panasonic TX-50DX800 – 2130 $

58" Panasonic TX-58DX800 – 2580 $

Panasonic DX780/DX750

DX780 and DX750 are two options design seventh series. These are the cheapest TVs with 4K resolution and a new processor NSH. DX780 equipped with dual tuner.

"Switch Design";

4K resolution;

HDR processing;

Super Bright Panel;

1800 BMR (Hz +);

Studio Master HCX processor;

Wide range of colors;

Limited local dimming (local dimming);

3D active;

Firefox OS 2.0;

Quad core PRO;

TV Anywhere;

In-house TV streaming;

Dual Tuner (only DX780).

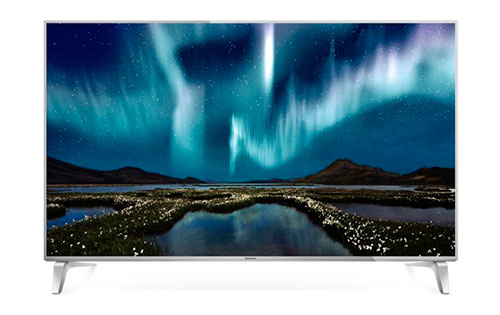

DX780/DX750
DX780/DX750

50" Panasonic TX-50DX750 – 1600 $

50" Panasonic TX-50DX780

58" Panasonic TX-58DX750 – 2000 $

58" Panasonic TX-58DX780

65" Panasonic TX-65DX750 – 2800 $

65" Panasonic TX-65DX780

Panasonic DX700/DX730

DX700 is the cheapest TV to support HDR processing. Nevertheless, we should remember that it does not have the hardware to properly display the highlights and deep blacks required for images in HDR.

"Switch Design";

4K resolution;

HDR processing;

1400 BMR (Hz +);

Wide range of colors;

Limited local dimming (local dimming);

Firefox OS 2.0;

TV Anywhere;

In-house TV streaming;

Quad core PRO.

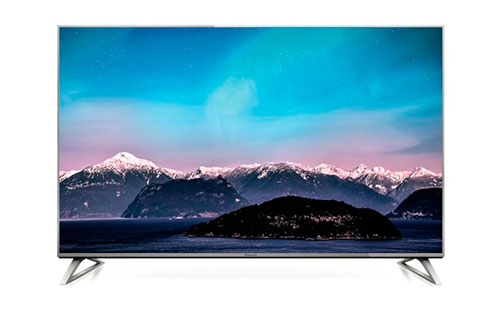

DX700/DX730
DX700/DX730

40" Panasonic TX-40DX700 – 900 $

50" Panasonic TX-50DX700 – 1150 $

58" Panasonic TX-58DX700 – 1450 $

Panasonic DX650

DX650 is a series of mid-range with a resolution of 4K. Unlike DX700 it will not be capable of processing HDR format.

"Clear Frame Design" design;

4K resolution;

1000 BMR (Hz +);

Wide range of colors;

Firefox OS 2.0;

Quad core PRO;

TV Anywhere;

In-house TV streaming;

Intelligent dimming backlight.

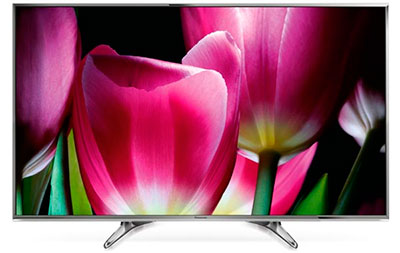

DX650
DX650

40" Panasonic TX-40DX650

50" Panasonic TX-50DX650

58" Panasonic TX-58DX650

Panasonic DH600

DX600 models will be the cheapest in 2016 with 4K resolution. There is also a Firefox OS 2.0 support.

"Tailored design" design;

4K resolution;

800 BMR (Hz +);

Wide range of colors;

Firefox OS 2.0;

Quad core PRO;

TV Anywhere;

In-house TV streaming;

Intelligent dimming backlight.

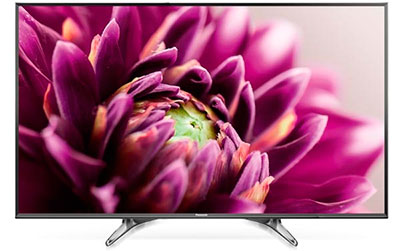

DX600
DX600

40" Panasonic TX-40DX600 – 720 $

49" Panasonic TX-49DX600 – 1050 $

55" Panasonic TX-55DX600 – 1350 $

Panasonic DS600/DS630

DS600 is the best HDTV (1920x1080 resolution) by Panasonic in 2016. But in this series, there is no modern image enhancement technologies. Case DS630 comes with support for 3D.

Full HD;

1000 BMR (Hz +) (except 32 ");

Bright bar;

3D (in DS630 only);

TV Anywhere;

In-house TV streaming;

My home Screen.

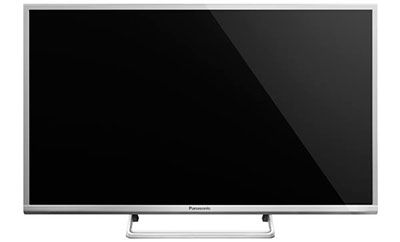

DS600/DS630
DS600/DS630

32" Panasonic TX-32DS600

32" Panasonic TX-32DS630

40" Panasonic TX-40DS600

40" Panasonic TX-40DS630

50" Panasonic TX-50DS600

50" Panasonic TX-50DS630

Panasonic DS500

DS500 is an HDTV with some of the features from the internet.

Full HD (except for 23 "and 32");

400 BMR (Hz +);

My Home Screen;

In-house TV streaming.

DS500
DS500

24" Panasonic TX-24DS500 – 325 $

32" Panasonic TX-32DS500 – 425 $

40" Panasonic TX-40DS500 – 575 $

49" Panasonic TX-49DS500 – 720 $

55" Panasonic TX-55DS500

Panasonic DS400

DS400 is the youngest series of HDTV models will only be available with 40-inch.

Full HD;

400 BMR (Hz+);

My Home Screen.

DS400
DS400
