AKAI TV Schematic Diagrams, Service Manuals For Free Download

AKAI TV PDF User Manuals

AKAI ACL-801 Service Manual

AKAI CT-1417 Service Manual

AKAI CT-2125UK Service Manual +Schematics

AKAI LTA-26C902, LTA-32C902, LTA-37C902 Service Manual +Schematics

AKAI LTA-32R5W4HCM, LTA-32R5W4HCP Service Manual

AKAI 14CNT11BB(BS), 21CTU01BC Service Manual

AKAI 14CT01,21CT21FS,21CT24FS,21CT71FS Service Manual

AKAI 14CT02,21CTS25FS Service Manual

AKAI 14CT04 Service Manual +Schematics

AKAI 14CT12 Chassis PX30043 (A-2042) Service Manual +Schematics

AKAI 14CT12 chassis PX30043 (A-2042) Service Manual +Schematics

AKAI 14CT12,21CT06FS,29CT06FS,15CT22FS,29CT42FSN,29CT42FSQ,21CT12SR Service Manual +Schematics

AKAI 14CTN50BS(BG),14CTN51BS(BG) Service Manual +Schematics

AKAI 15CT53FS chassis M66 Service Manual +Schematics

AKAI 15CT53FS Service Manual +Schematics

AKAI 15CTF66BC, 21CTF66BC, 21CTS65BS Service Manual +Schematics

AKAI 21CT32FSR Service Manual +Schematics

AKAI 21CTS84FSN,21CT05FS,25CT06FS,29CT07FSN Service Manual +Schematics

AKAI 21CTS92FS Service Manual +Schematics

AKAI 21CTU91BC 21CTU93BC 21CTU94BC Service Manual

AKAI 21CTU91BC Chassis IVPH-002-21 Service Manual

AKAI 21CTU91BC Service Manual

AKAI 21CTU94BC Service Manual

AKAI 25CT23FSR,29CT23FSR Service Manual +Schematics

AKAI 29CT08HN Service Manual + Schematics

AKAI 29CT08HN2 Service Manual + Schematics

AKAI 29CT24FS, 29CT71FS Service Manual + Schematics

AKAI 29CT42FSN chassis A-2900 Service Manual + Schematics

AKAI 29CT67HNT Service Manual + Schematics

AKAI 29CTF05BS Chassis GB-5 Service Manual + Schematics

AKAI 29CTF66BC Service Manual + Schematics

AKAI 1405 Service Manual + Schematics

AKAI 1411_2111 chassis Service Manual + Schematics

AKAI 1420CK Service Manual + Schematics

AKAI 2020 Service Manual + Schematics

AKAI 2021 Service Manual + Schematics

AKAI 2107 Service Manual + Schematics

AKAI 2120 Service Manual + Schematics

AKAI ACL-701 Service Manual + Schematics

AKAI ATF-505 Service Manual + Schematics

AKAI ATF-710 Service Manual + Schematics

AKAI ATF-801 Service Manual + Schematics

AKAI ATF-801 Service Manual + Schematics

AKAI ATF-957 Service Manual + Schematics

AKAI chassis EX1-A4 Service Manual + Schematics

AKAI CT 2125UK Service Manual + Schematics

AKAI CT 2867 Service Manual + Schematics



AKAI CT-20WKDT CT-14WKDT chassis M66 Service Manual + Schematics

AKAI CT-1407D Service Manual + Schematics

AKAI CT-1417UK Service Manual

AKAI CT-2005 Service Manual + Schematics

AKAI CT-2007DT Service Manual + Schematics

AKAI CT-2012 Service Manual + Schematics

AKAI CT-2107D Service Manual + Schematics

AKAI CT-2599E DIGITAL STEREO B-E2 ch. NOKIA Service Manual + Schematics

AKAI CT-2872 Service Manual + Schematics

AKAI CT-3400A chassis M66 Service Manual + Schematics

AKAI CT-C29NNES Service Manual + Schematics

AKAI CT-G140 G215 Service Manual + Schematics

AKAI CT-G140-215-version-2 Service Manual + Schematics

AKAI CT-G1401E Service Manual + Schematics

AKAI CT-G1420E_2120E Service Manual + Schematics

AKAI CT-G2111E - 8821 Service Manual + Schematics

AKAI CT-G2501E Service Manual + Schematics

AKAI CT1407 Service Manual + Schematics

AKAI CT2007 Service Manual + Schematics

AKAI CT2107 Service Manual + Schematics

AKAI CT2137 Service Manual + Schematics

AKAI CT2141 Service Manual + Schematics

AKAI CT2157SM Service Manual + Schematics

AKAI CT2159SM Service Manual + Schematics

AKAI CT2160CK Service Manual + Schematics

AKAI CT2161 Service Manual + Schematics

AKAI CT2162SM Service Manual + Schematics

AKAI CT2177SM Service Manual + Schematics

AKAI CT2565 Service Manual + Schematics

AKAI CT2567 Service Manual + Schematics

AKAI CT2570 Service Manual + Schematics

AKAI ct2590 Service Manual + Schematics

AKAI CT2862CK Service Manual + Schematics

AKAI CT2865 Service Manual + Schematics

AKAI CT2867 Service Manual + Schematics

AKAI CT2870 Service Manual + Schematics

AKAI CTG-2101E;2105E;2109E Service Manual + Schematics

AKAI CTW3257 Service Manual + Schematics

AKAI EA CHASSIS Service Manual + Schematics

AKAI LC-37K7 Service Manual + Schematics

AKAI LCD LTA-15A302, LTA-20A302, LTA-20A303 Service Manual + Schematics

AKAI LCT32AD, LCT32HA36 Service Manual + Schematics

AKAI LCT2701TD Service Manual + Schematics

AKAI LCT2716 SM Service Manual + Schematics

AKAI LCT3201TD Service Manual + Schematics

AKAI LCT4216 Service Manual + Schematics

AKAI LEA-19H03P Service Manual

AKAI LEA-22H03P Service Manual + Schematics

AKAI LTA-15A301 Service Manual + Schematics

AKAI LTA-15E302, LTA-20E302, LTA-20E303 Service Manual

AKAI LTA-15E304(MX), LTA-15E305(MX) Service Manual + Schematics

AKAI LTA-15N602M, LTA-15N680HCP, LTA-15N686HCP, LTA-19N508HCP, LTA-22N680HCP, LTA-22N686HCP Service Manual + Schematics

AKAI LTA-15S5N1M Service Manual

AKAI LTA-16S01P, LTA-19S01P, LTA-22S01P, LTA-24S01P, LEA-16S02P, LEA-19S02P Service Manual + Schematics

AKAI LTA-16S5X3M Service Manual + Schematics

AKAI LTA-20A301 Service Manual

AKAI LTA-20E304(MT), LTA-20E305(MT, DMT) Service Manual + Schematics

AKAI lta-26_32c904 Service Manual + Schematics

AKAI lta-26_32c904 Service Manual + Schematics

AKAI LTA-26N551HCP Service Manual + Schematics

AKAI LTA-26N573HCA Service Manual

AKAI LTA-32C904 (Power Supply FSP205-5E01) chassis; LS01 Service Manual + Schematics

AKAI LTA-32C904 Power Supply Service Manual + Schematics

AKAI LTA-32N551HCP Service Manual

AKAI LTA-32N573HCA Service Manual + Schematics

AKAI LTA-32N576HCP Service Manual + Schematics

AKAI LTA-32N658HCP, LTA-32N680HCP, LTC-26N680HCP, LTC-32N680HCP Service Manual + Schematics

AKAI LTC-16R5X2M Service Manual

AKAI LTC-16R5X3M Service Manual + Schematics

AKAI LTC-32R5W4HCP Service Manual

AKAI LTC-32R5X3HCM Service Manual + Schematics

AKAI P42L6A-T1 Service Manual

AKAI PDP4206EM Service Manual + Schematics

AKAI CT 1417 Service Manual + Schematics

AKAI TV-2835TUK STV-2801T Service Manual + Schematics

AKAI TV2551SM Service Manual + Schematics

AKAI CT-2107D (common power supply failure)

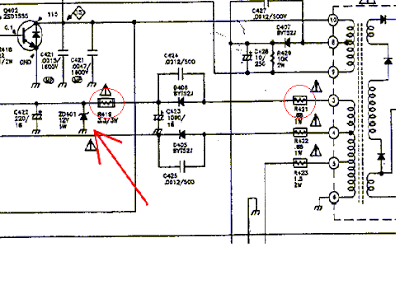

This frequent malfunction concerns not only this TV, but all televisions. Most often, electrolytic capacitors dry out, which is why some TV sets start with difficulty at first, then they stop switching on completely. In others, as in AKAI CT-2107D, when the con- dens dry up, the power supply unit gives an increased voltage to the entire TV set. Therefore, for any repairs, it is desirable to check the capacitors in the power supply and, if necessary, replace them. In this case, the electrolytic capacitors C911 and C909 are 47μF 50 volts.

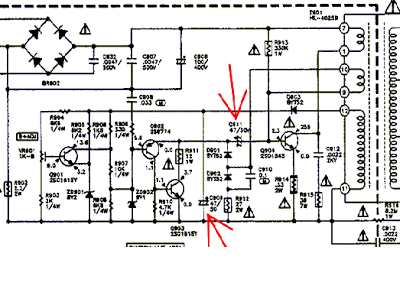

With increased voltage on the drain sweep, the secondary power supply from the TDX also produces overstated voltages. As a result, in this model the zener diode ZD401 (at 12 volts) breaks down - short-circuiting the case. In the rectifier circuit there are two resistors R421 (0,68 Ohm) and R419 (3,3 Ohm), some of which necessarily will burn. The TV will not work, but the power supply will give an increased voltage to the whole TV and can burn much.

Instead of the zener diode ZD401, you can not put KREEN 7812, as in the event of a power failure, it will not fail, and other details-horizontal line filter filter capacitors, horizontal output transistor, TDX and other details.



In general, because of the increased voltage on the line scan - there is increased radiation of the kinescope, which, as you know, leads to a deterioration in health. Thus, the failure of the Zener diode ZD401 speaks first of all of the failure of the power supply. And if there is a Krenka 7812,

then, apart from the burnt parts, the customer also receives radiation from the kinescope.



Such a scheme of the TV, but it can be improved by placing a protective avalanche diode R2K or R2M on the chain of 115 volts - supply of urgent sweep.



With such a defect, if it does not, the chip of the frame scan LA7830, which is powered by a voltage of 25 volts from the TDX, is out of order. In general, we can say that with such a malfunction, it almost always flies.



Well, if very unlucky, then the processor on the AN5601K chip may fail.
